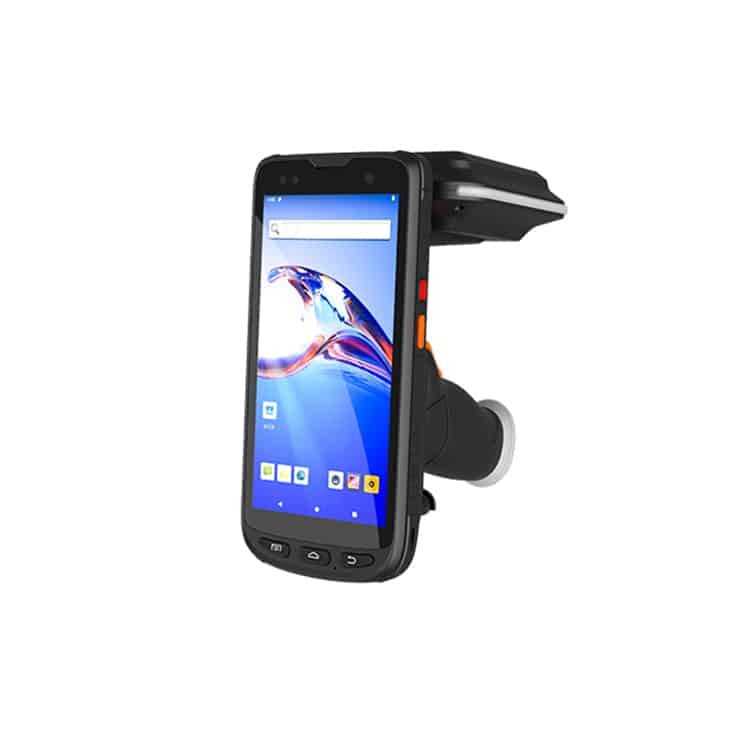

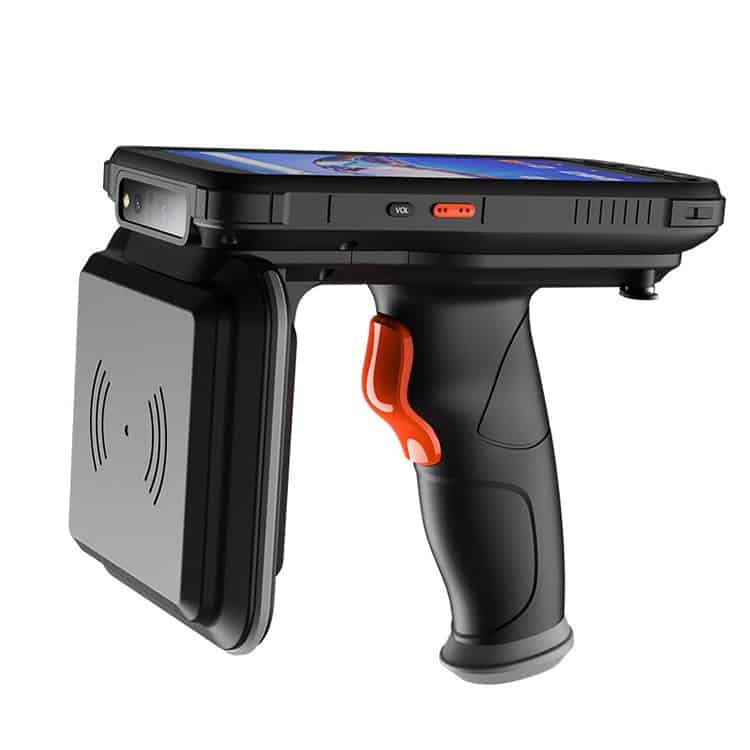

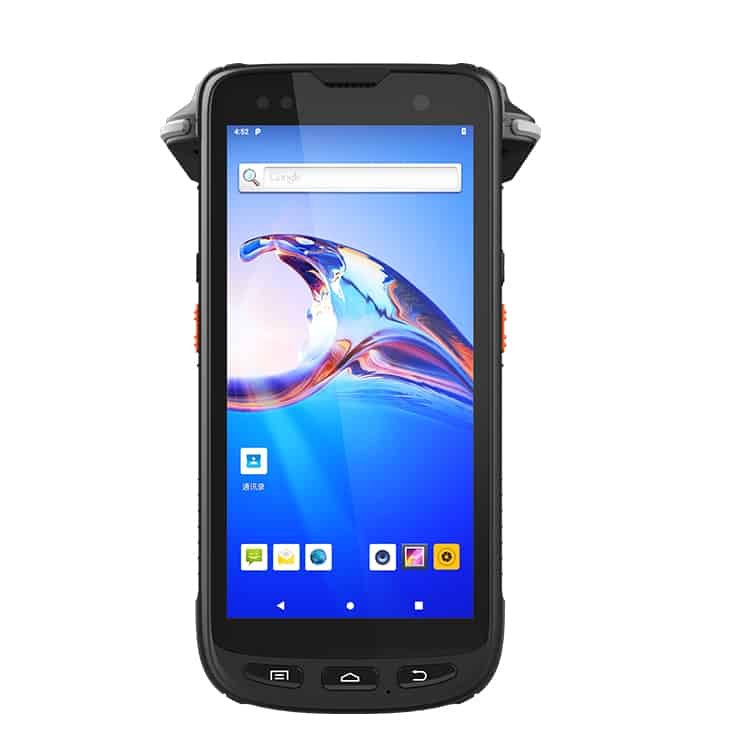

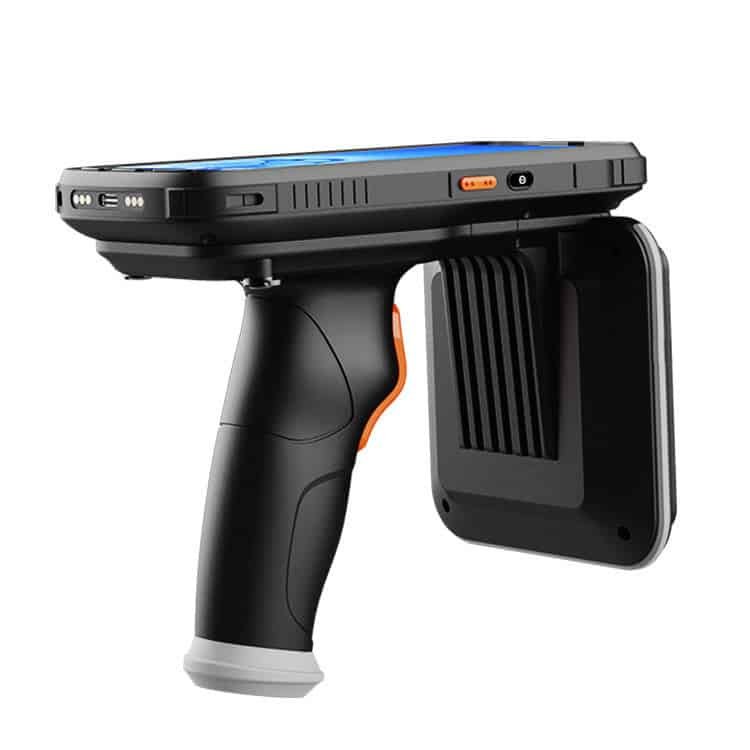

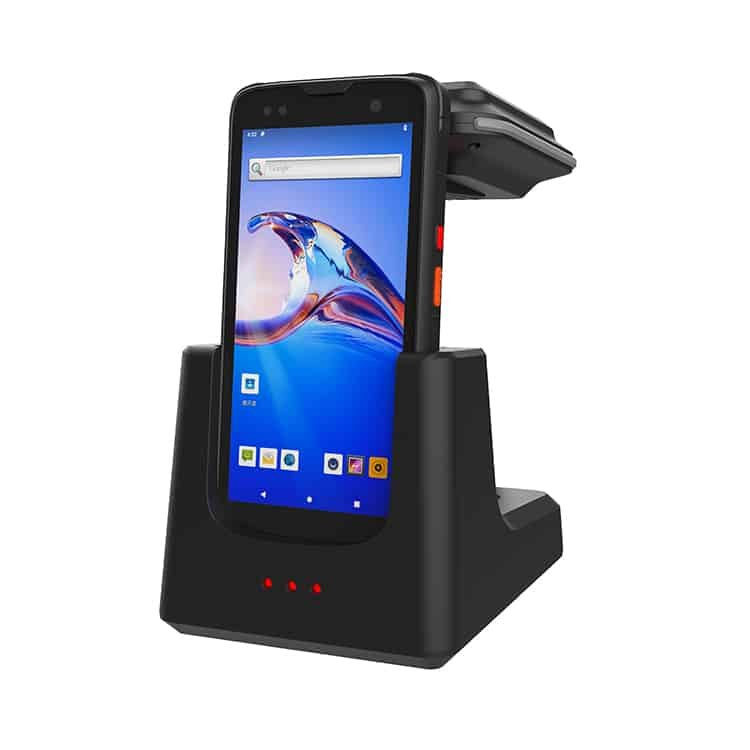

X6 UHF RFID Reader PDA Android 10.0

[table id=2 /]

Parameter

Detailed product specifications

Review product parameters, technical tables, communication options, development environment, and supported industrial functions.

Physical Characteristics

Technical information and configuration details.

Dimensions 166×79×31±2mm (grip length about 110mm)
Weight about 650g (including battery) (N.W.; depends on configuration)
CPU Cortex A73 2.0GHz octa-core
RAM+ROM 4G+64GB or 2G+16GB
Display Gorilla Glass 5.5 in. TFT-LCD, (720×1440) touch screen with backlight
Colour Black
Battery Richargeable, removable, 3.8V 9000mAh Li-ion battery
Camera Rear 13MP AF, high light LED flash, Front 5MP camera
Interfaces USB-Type C, other slots: 1 PSAM, 1 SIM, 1 TF
Audio Microphone, noise reduction, speaker, receiver
Keypad volume, power, grip , function button, home, return button
Sensors 3D accelerator,E-compass,proximtity sensor,Light sensor

Communication

Technical information and configuration details.

WWAN TDD-LTE Band B38, B39, B40, B41
FDD-LTE Band B1, B2, B3, B4, B7, B17, B20
WCDMA (850/1900/2100)
GSM/GPRS/Edge (850/900/1800/1900)
WLAN Support 802.11 a/b/g/n/ac, 2.4G/5G dual-band
Bluetooth BT4.2 BLE
GNSS GPS/AGPS, GLONASS, BeiDou

Developing Environment

Technical information and configuration details.

Operating System Android 10.0, GMS
SDK Emagic Software Development Kit
Language Java

Barcoding

Technical information and configuration details.

1D & 2D Barcode Scanner Zebra: SE4710
1D Symbologies UPC/EAN, Code128, Code39, Code93, Code11, Interleaved 2 of 5, Discrete 2 of 5, Chinese 2 of 5, Codabar, MSI, RSS, etc.
2D Symbologies PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode; Postal Codes: US PostNet, US Planet, UK Postal, Australian Postal, Japan Postal, Dutch Postal (KIX),etc.

User Environment

Technical information and configuration details.

Operating Temp. -10℃ +50 ℃
Storage Temp. -20 ℃~+70 ℃
Humidity 5% RH – 95% RH non condensing
Drop Specification Multiple 1.5 m / 4.92 ft. drops (at least 20 times) to the concrete across the operating temperature range;
Tumble Specification 1000 x 0.5 m / 1.64 ft. falls at room temperature
Sealing IP65
ESD ±12 KV air discharge, ±6 KV conductive discharge

RFID

Technical information and configuration details.

NFC 13.56 MHz; ISO14443A/B, ISO15693
RFID (UHF) Protocol standard: EPC G2/ISO 18000-6C;
Working frequency: 860-960MHz
Antenna parameters: Circular antenna built-in (3dBi)
Power: working voltage 3.6V-5V, RF output 5dBm to 30 or 33dbm
Standby power consumption is about 0.25W, maximum 7.5W (typical 7W);
Reading distance: 0-20m (depends on environment and tag)
Multi-tags read rate > 200 tags per second

Other Functions

Technical information and configuration details.

Not support
