Android Rugged Tablets

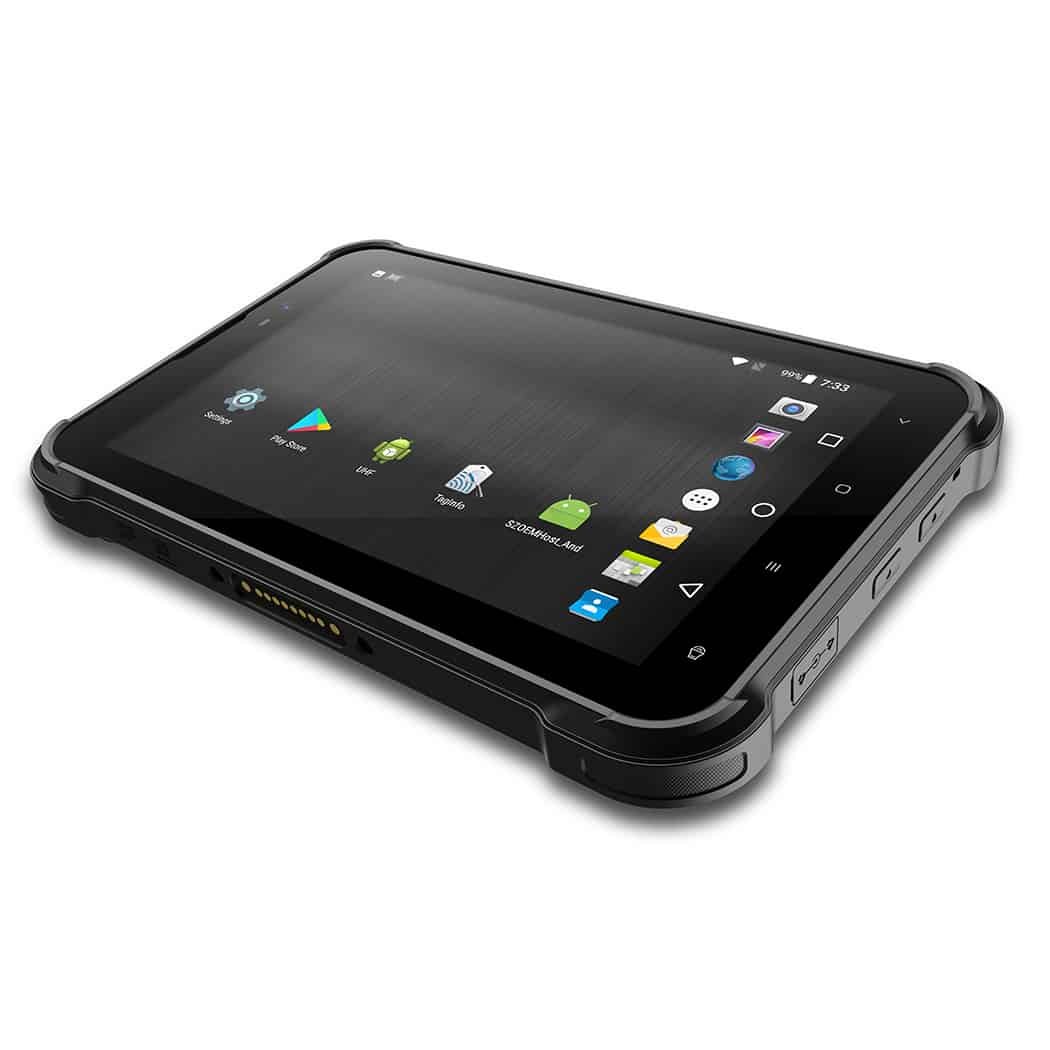

P9008 Industrial Android Rugged Tablet

[table id=7 /]

Get a Quote View Parameters

Parameter

Detailed product specifications

Review product parameters, technical tables, communication options, development environment, and supported industrial functions.

Physical Characteristics

Technical information and configuration details.

Dimensions 225*146*21mm
Weight about 750g (including battery)
CPU MTK6765
RAM+ROM 4G+64GB or 6G+128GB
Display 8.0 inch Multi-touch panel, IPS 1280*800 (Option: 1000NT)
Colour Black
Battery 3.85V, 8000mAh, removable, rechargeable
Camera Rear 13.0MP with flashlight, front 5MP(Option: Rear: 16/21 MP; Front 8 MP)
Interfaces TYPE-C, support QC, USB 2.0, OTG
Card slot SIM1 slot and SIM2 slot Or (SIM card and T-Flash card), Micro SDcard, up to 128GB
Audio Microphone, speaker, receiver
Keypad 7 (ptt, scanner, power, Customiztion1, 2, volume+, volume-)
Sensors 3D accelerator,E-compass,proximtity sensor,Light sensor

Communication

Technical information and configuration details.

WWAN (Asia, Europe, America) LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B12/B13/B17/B18/B19/B20/B25/B26/B28;
LTE-TDD: B34/B38/B39/B40/B41;
WCDMA: B1/B2/B5/B8;
GSM: 850/900/1800/1900
WLAN Support IEE 802.11 a/b/g/n/ac, 2.4G/5.8G dual-band
Bluetooth Bluetooth 5.0
GPS GPS/AGPS, GLONASS, BeiDou

Developing Environment

Technical information and configuration details.

Operating System Android 12, GMS
SDK Emagic Software Development Kit
Language Java

Barcoding

Technical information and configuration details.

1D & 2D Barcode Scanner Zebra: SE4710; Honeywell: 5703
1D Symbologies UPC/EAN, Code128, Code39, Code93, Code11, Interleaved 2 of 5, Discrete 2 of 5, Chinese 2 of 5, Codabar, MSI, RSS, etc.
2D Symbologies PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode; Postal Codes: US PostNet, US Planet, UK Postal, Australian Postal, Japan Postal, Dutch Postal (KIX),etc.

User Environment

Technical information and configuration details.

Operating Temp. -10℃ +50 ℃
Storage Temp. ’-20 ℃~+60 ℃
Humidity 5% RH – 95% RH non condensing
Drop Specification Multiple 1.5 m / 4.92 ft. drops (at least 20 times) to the concrete across the operating temperature range;
Tumble Specification 1000 x 0.5 m / 1.64 ft. falls at room temperature
Sealing IP67
ESD ±12 KV air discharge, ±6 KV conductive discharge

RFID

Technical information and configuration details.

NFC 13.56 MHz; ISO14443A/B, ISO15693
UHF Chip: Magic RF
Frequency: 865-868 MHz / 920-925 MHz / 902-928 MHz
Protocol: EPC C1 GEN2 / ISO18000-6C
Antenna: Circular polarization (-2 dBi)
Power: 0 dBm to +27 dBm adjustable
Max Read Range: 0~4m
Reading speed: Up to 200 tags/sec reading 96-bit EPC
Note Connect pistol grip with built in UHF reader and battery

Other Functions

Technical information and configuration details.

PSAM Support, ISO 7816, optional
