Windows Rugged Tablet PC

EM17 10.1-inch Windows Rugged Tablet

EM17 is a rugged windows tablet PC with Intel® Celeron® N5100 processor, and a CPU speed reaches 2.8GHz, provides an excellent performance, powerd by the 4GB RAM and Windows 11 Pro operating system, a perfect choice for your application or as an embedded device.

  • Brilliant 10.1 inch multi-touch screen
  • Multiple interfaces options, and with USB 3.0 fast data transfer port
  • Advanced wireless connectivity, support 2.4G/5G, WIFI, BT5.0 LTE etc.
  • Removeable 5000mAh battery, support fast charging
  • Support optional 2D imager barcode scanning capabilities
Get a Quote View Parameters
EM17 10.1-inch Windows Rugged Tablet
window-pc-product-07
window-pc-product-06
window-pc-product-04
window-pc-product-03
window-pc-product-02
window-pc-product-01
EM17 10.1-inch Windows Rugged Tablet
window-pc-product-07
window-pc-product-06
window-pc-product-04
window-pc-product-03
window-pc-product-02
window-pc-product-01

Parameter

Detailed product specifications

Review product parameters, technical tables, communication options, development environment, and supported industrial functions.

Physical Characteristics

Technical information and configuration details.

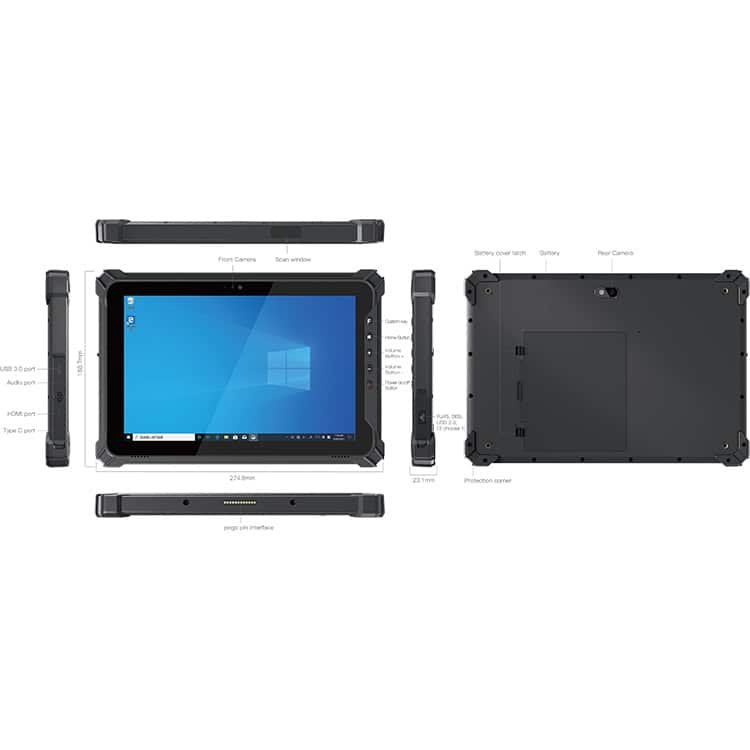

Dimensions 274.9*188.7*23.1mm
Weight about 1140g (including battery) (N.W.; depends on configuration)
CPU Intel® Celeron® Processor N5100
RAM+ROM 4G+64GB (Ram option: 8+128GB)
Display 10.1 inch TFT 16:10, 1920×1200; 10 point capacitive touch screen
Colour Black

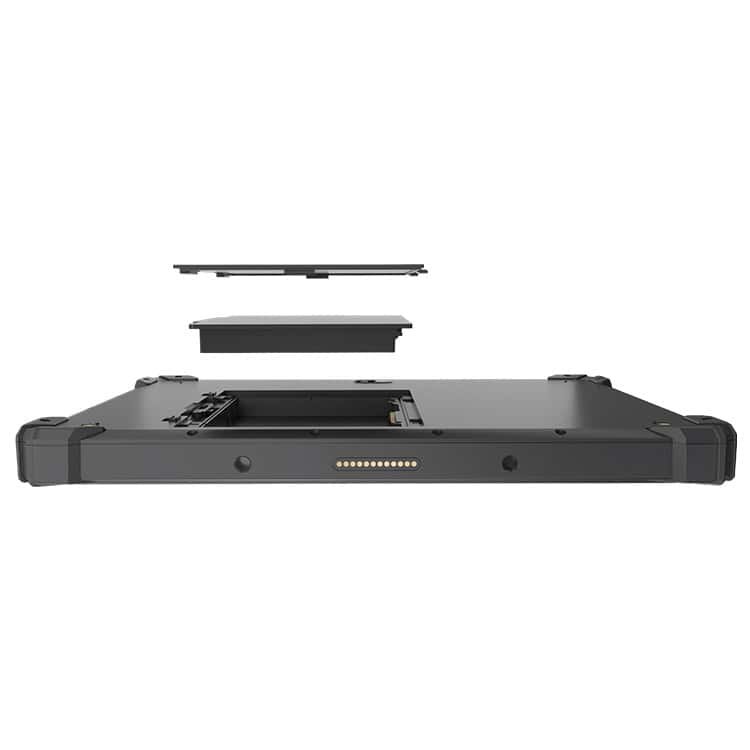

Battery 7.6V/5000mAh, Removable Li-polymer battery, endurance 6hrs
Camera Front 5.0MP Rear 8.0MP

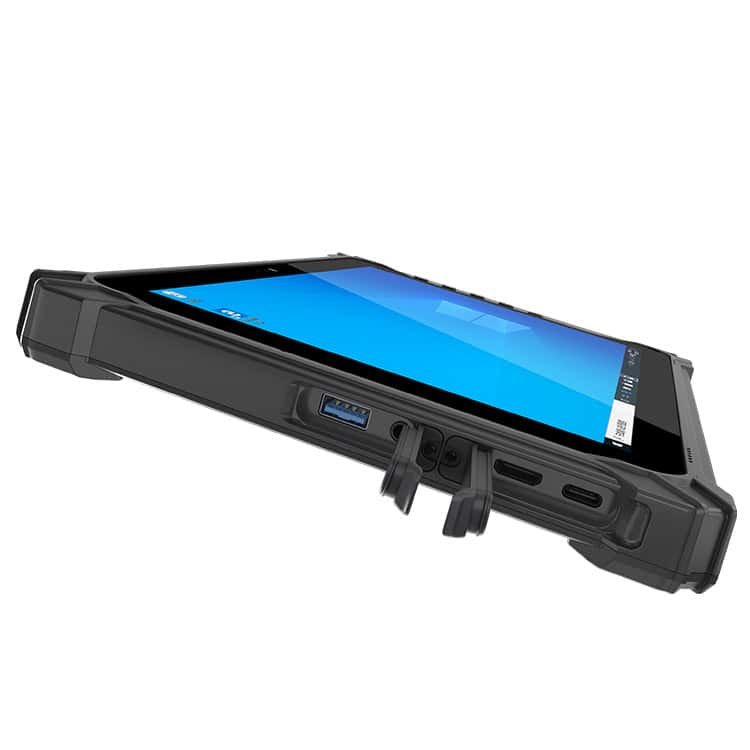

Interfaces USB 3.0 Type-A x 1, USB Type-C x 1,
SIM Card, TF Card (Three in one card holder),
HDMI 1.4a x 1,
12pins Pogo Pin x 1,
Φ3.5mm standard earphone jack x 1
Keypad 5 keys (power key, home, custom key, volume + -)

Communication

Technical information and configuration details.

WWAN (Optional) LTE FDD: B1/B3/B7/B8/B20, LTE-TDD: B40
WCDMA: B1/B5/B8, GSM: B3/B8
WLAN 802.11 a/b/g/n/ac (2.4G/5.8G)
Bluetooth Bluetooth 5.0
GNSS Built-in GPS+Glonass

Developing Environment

Technical information and configuration details.

Operating System Windows 11; Optional Windows 10
SDK Emagic Software Development Kit

Barcoding

Technical information and configuration details.

1D & 2D Barcode Scanner Optional

User Environment

Technical information and configuration details.

Operating Temp. -20 °C ~ 60 °C
Storage Temp. -30 °C ~ 70 °C
Humidity 5% RH – 95% RH non condensing
Drop Specification 1.22m
Tumble Specification 1000 x 0.5 m / 1.64 ft. falls at room temperature
Sealing IP65 certified, MIL-STD-810G certified

RFID

Technical information and configuration details.

NFC Optional, support ISO/IEC 14443A/B, ISO/IEC 15693,
ISO/IEC 18092, ISO/IEC mifare protocol

Other Functions

Technical information and configuration details.

Extension modules RJ45 (10/100M) x 1/ DB9 (RS232) x 1/ USB 2.0 Type-A x 1 (3 choose 1)

Accessories

Technical information and configuration details.

Standard USB cable*1+ adapter*1 + battery*1
Optional Docking Charger/Hand-strap/Car charger/TP Resist film/Vehicle Mount
