IMPINJ E710 chip
RJ-45/RS-232/RS-485/USB/Wiegand ports optional
Supports RSSI and tag data filtering
Supports long range RFID reading
Support antenna detection function
Parameter
Review product parameters, technical tables, communication options, development environment, and supported industrial functions.
Technical information and configuration details.

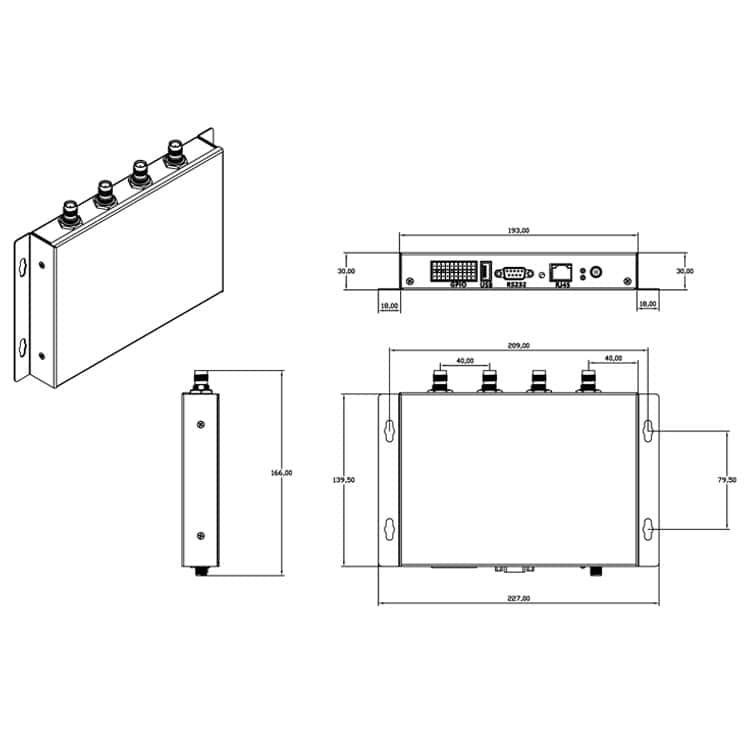

| Dimensions | 209*139.5*30mm |
| Weight | TBC |
| Interfaces | 10/100 Base-T Ethernet interface, 232/485 serial port optional, wiegand, GPIO |
| Antenna ports | 4 TNC reverse ports |
| Indicator | power light, working condition light |
| Power supply | DC 9-15V |
Technical information and configuration details.
| Communication way | T Ethernet, RFID; optional: RS232 (485) |
Technical information and configuration details.
| SDK | support |
Technical information and configuration details.
Not support
Technical information and configuration details.
| Operating Temp. | -20℃ +60 ℃ |
| Storage Temp. | -20 ℃~+70 ℃ |
| Humidity | 5% RH – 95% RH non condensing |
Technical information and configuration details.
| RFID chip | E710 IMPINJ |
| Frequency | 865-868 MHz / 920-925 MHz / 902-928 MHz (customizable) |
| Protocol | ISO18000-6C（EPC global UHF Class 1 Gen 2 ） |
| Read range | ≥10meters (8dbi antenna) |
| Read Speed | ≥400tags/s |
| Power consumption | Standby: 2.5W; Working: 15W (Max) |
| Tag cache | 1000tags |
| Output power | 5-33 dBm（+/-1.0dBm adjustable） |
Technical information and configuration details.
Not Applicable
Technical information and configuration details.
| Optional | Adapter |
