Printers

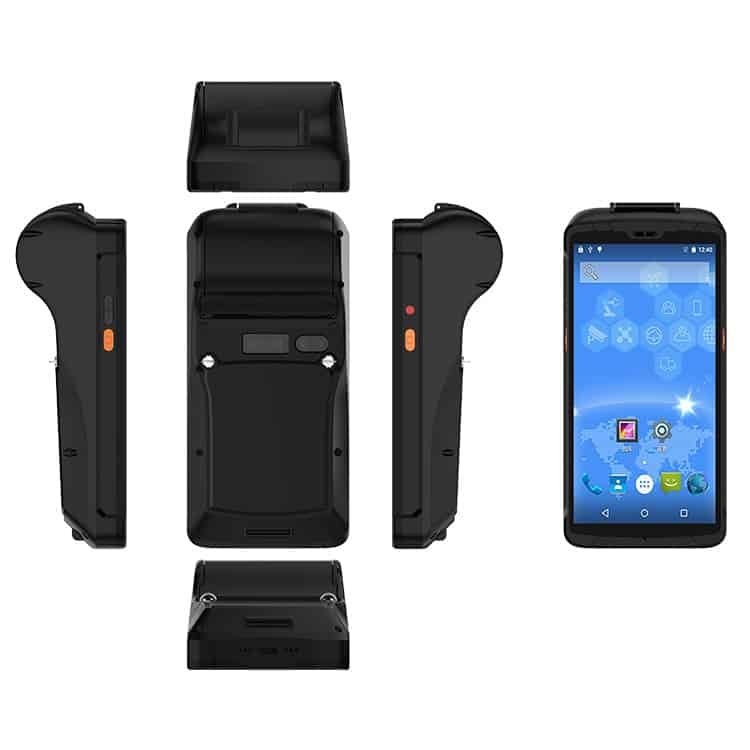

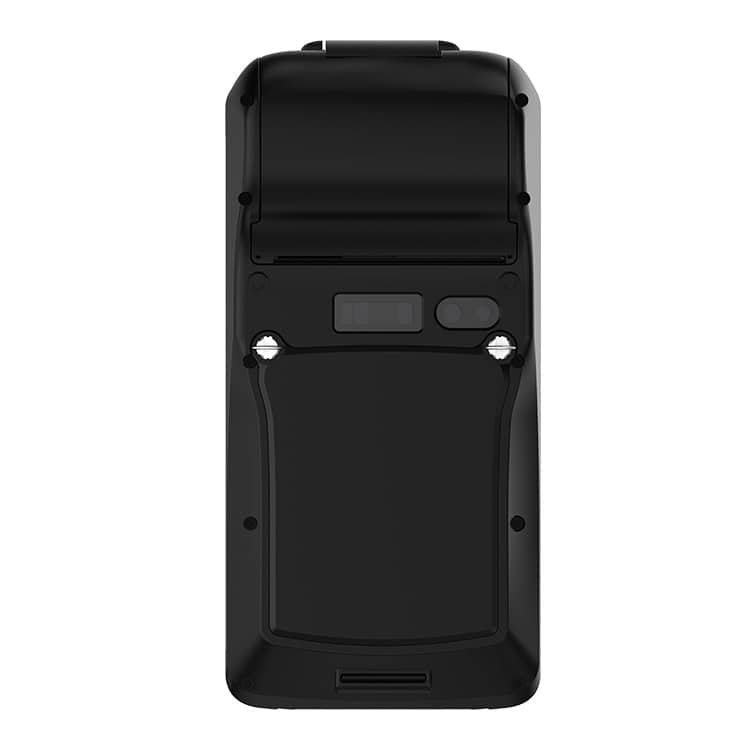

PDA Mobile Computer with Built-in Printer

ZR-2 is an android PDA with 2inch built-in printer, support self-adhesive and thermal printing, which is very convenient to use in portable application scenarios, support barcode scanning, NFC at the same time, applicable for law enforcement, vehicle parking and retail industries.

  • 6inch HD full screen 18:9, large visual size
  • Android 11 OS, high performance CPU
  • Supports barcode scanner, RFID, thermal printer at the same device
  • PC+TPU plastics, Two-color injection molding, rugged design, comfortable to grip
Get a Quote View Parameters
PDA Mobile Computer with Built-in Printer
PDA-printer-product-03
PDA-printer-product-02
PDA-printer-product-01
PDA Mobile Computer with Built-in Printer
PDA-printer-product-03
PDA-printer-product-02
PDA-printer-product-01

Parameter

Detailed product specifications

Review product parameters, technical tables, communication options, development environment, and supported industrial functions.

Physical Characteristics

Technical information and configuration details.

Dimensions 174*82*35mm (the thickest part is 56mm)
Weight about 460g (including battery) (N.W.; depends on configuration)
CPU Octa-core, 2.0Ghz
RAM+ROM 4G+64GB or 6G+128GB
Display 6 inch Multi-touch panel, IPS 2160*1080, tempered glass
Colour Black
Battery Richargeable, removable 4000mAh
Camera Rear camera 13MP AF High brightness LED flash, Front Camera 5MP FF
Interfaces USB-Type C, support fast charge, support OTG
Base Charging and USB Contacts; Support Base Extension
Card slot Micro sim card slot; TF card: max 128GB
Audio Microphone, noise reduction, speaker, receiver
Keypad 5 keys (power key, 2 * function keys, volume + -)
Sensors 3D accelerator,E-compass,proximtity sensor,Light sensor

Communication

Technical information and configuration details.

WWAN FDD-LTE B1/B4/B5/B7/B8
TDD-LTE B38/B39/B40/B41
WCDMA B1/B2/B5/B8
GSM B2/B5/B8
CDMA/EVDO BC0 BC1
WLAN Support 802.11 a/b/g/n/ac, 2.4G/5G dual-band
Bluetooth Bluetooth 4.1
GNSS GPS, GLONASS, BeiDou

Developing Environment

Technical information and configuration details.

Operating System Android 11 or 8.1
SDK Emagic Software Development Kit
Language Java

Barcoding

Technical information and configuration details.

1D & 2D Barcode Scanner Honeywell: 6603/ Newland CM60
1D Symbologies UPC/EAN, Code128, Code39, Code93, Code11, Interleaved 2 of 5, Discrete 2 of 5, Chinese 2 of 5, Codabar, MSI, RSS, etc.
2D Symbologies PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode; Postal Codes: US PostNet, US Planet, UK Postal, Australian Postal, Japan Postal, Dutch Postal (KIX),etc.

User Environment

Technical information and configuration details.

Operating Temp. -10℃ +50 ℃
Storage Temp. -20 ℃~+70 ℃
Humidity 5% RH – 95% RH non condensing
Drop Specification Multiple 1.5 m / 4.92 ft. drops (at least 20 times) to the concrete across the operating temperature range;
Tumble Specification 1000 x 0.5 m / 1.64 ft. falls at room temperature
Sealing IP65
ESD ±12 KV air discharge, ±6 KV conductive discharge

RFID

Technical information and configuration details.

NFC 13.56 MHz; ISO14443A/B, ISO15693

Other Functions

Technical information and configuration details.

Built-in Printer 2 inch adhesive printer
Support adhesive and thermal printing; The print head has a lifetime of 50KM
Roll diameter 40mm, speed 80mm/s
PSAM Optional

Accessories

Technical information and configuration details.

Standard USB cable*1+ adapter*1 + battery*1
Optional car charger
