Windows Rugged Tablet PC

EM10 10.1-inch Windows Rugged Tablet

EM10 is with Windows 11 OS, large RAM/ROM, powered by Intel® Celeron® processor, the EM10 brings greater computing and GPU performance with reduced power consumption, ideal for situations of complex tasks processing.

  • Multiple accessories options like RJ45, RS232, Type C, Mini HDMI…
  • Brilliant 10.1 inch multi-touch screen
  • Two batteries, long standby time
  • Real-time monitoring temperature, intelligent active cooling
  • Robust security, with fingerprint unlock and TPM 2.0 data security
Get a Quote View Parameters
EM10 10.1-inch Windows Rugged Tablet
windows-tablet-product-08
windows-tablet-product-07
windows-tablet-product-06
windows-tablet-product-05
windows-tablet-product-03
windows-tablet-product-02
windows-tablet-product-01
EM10 10.1-inch Windows Rugged Tablet
windows-tablet-product-08
windows-tablet-product-07
windows-tablet-product-06
windows-tablet-product-05
windows-tablet-product-03
windows-tablet-product-02
windows-tablet-product-01

Parameter

Detailed product specifications

Review product parameters, technical tables, communication options, development environment, and supported industrial functions.

Physical Characteristics

Technical information and configuration details.

Dimensions 289.9*196.7*27.4mm
Weight about 1140g (including battery) (N.W.; depends on configuration)
CPU Intel® Celeron® Processor N5105
RAM+ROM 8G+128GB (Ram option: 16GB)
Display 10.1 inch IPS 16:10, 1200×1920, 700nits; 10 point G+G capacitive touch screen
Colour Black

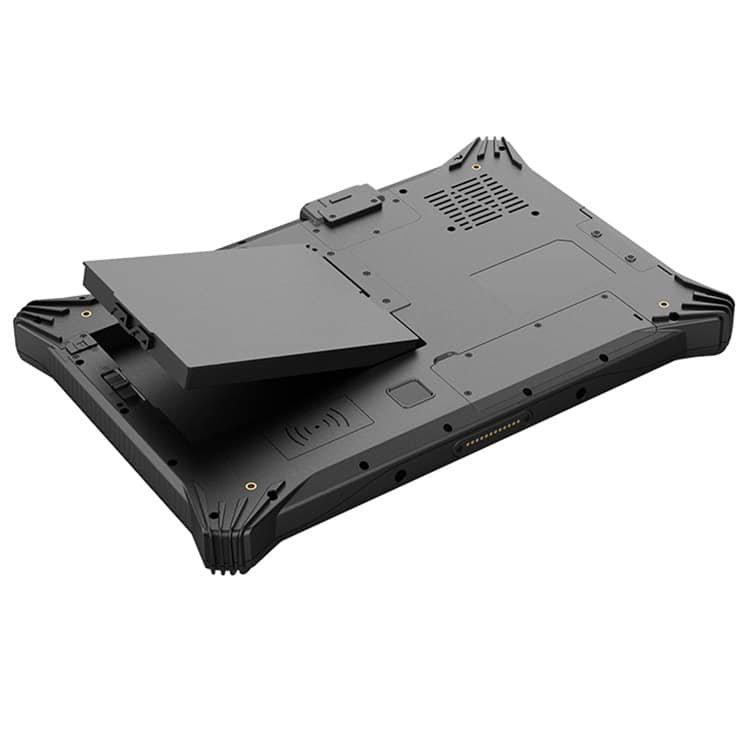

Battery 7.4V/5000mAh, Removable Li-polymer battery, endurance 5hrs; Built-in Li-polymer battery 7.4V/700mAh
Camera Front 5.0MP Rear 8.0MP

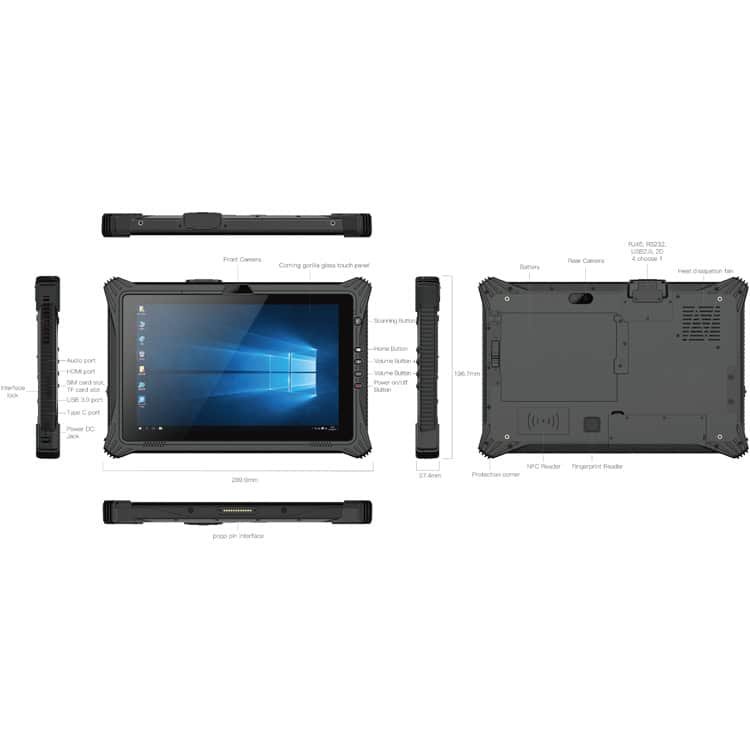

Interfaces USB 3.0 Type-A x 1, USB Type-C x 1,
SIM Card x 1, TF Card x 1,
HDMI 1.4a x 1,
12pins Pogo Pin x 1,
Φ3.5mm standard earphone jack x 1,
Φ5.5mm DC jack x 1
Keypad 5 keys (power key, home, scanning, volume + -)

Communication

Technical information and configuration details.

WWAN(Optional) LTE FDD: B1/B3/B7/B8/B20
LTE TDD: B40 WCDMA: B1/B5/B8
GSM: B3/B8
WLAN 802.11 a/b/g/n/ac (2.4G/5.8G)
Bluetooth Bluetooth 5.0
GNSS Built-in GPS+Glonass

Developing Environment

Technical information and configuration details.

Operating System Windows 11
SDK Emagic Software Development Kit

Barcoding

Technical information and configuration details.

1D & 2D Barcode Scanner Optional

User Environment

Technical information and configuration details.

Operating Temp. -20 °C ~ 60 °C
Storage Temp. -30 °C ~ 70 °C
Humidity 5% RH – 95% RH non condensing
Drop Specification 1.22m
Tumble Specification 1000 x 0.5 m / 1.64 ft. falls at room temperature

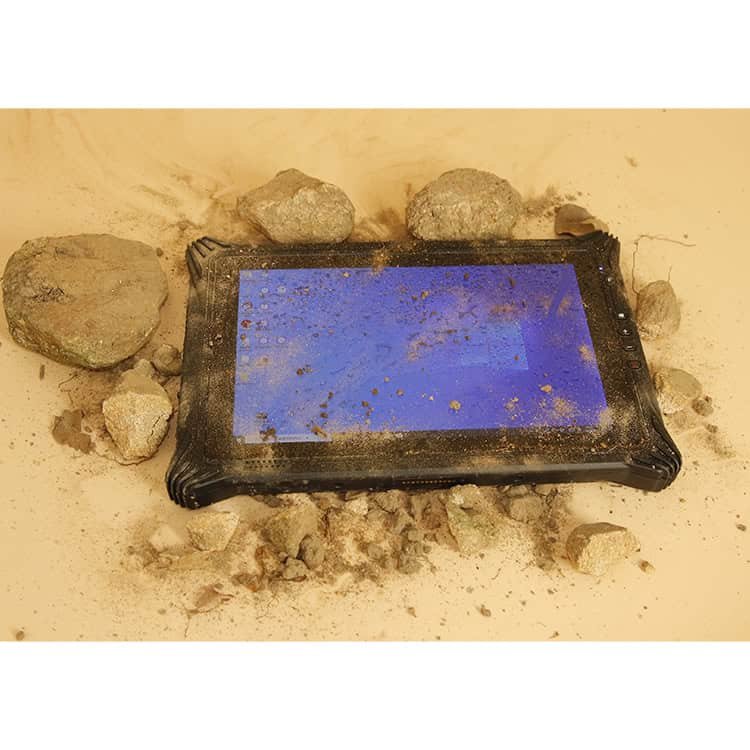

Sealing IP65 certified, MIL-STD-810G certified

RFID

Technical information and configuration details.

NFC 13.56 MHz; Built-in, ISO/IEC 14443A; Optional

Other Functions

Technical information and configuration details.

Extension modules DB9 (RS232) x 1/ USB 2.0 x 1/ RJ45 (10/100M) x 1 (optional)

Accessories

Technical information and configuration details.

Standard USB cable*1+ adapter*1 + battery*1
Optional Docking Charger/Hand-strap/Car charger/carry handle/Vehicle Mount
